STANDING SEAM METAL ROOF SYSTEMS
DURABLE AND WEATHER-TIGHT METAL ROOF PANELS

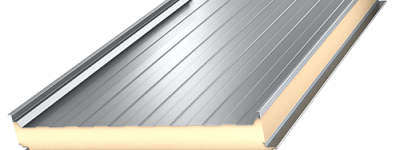

Ultra Lock Standing Seam Panel
A snap-together, trapezoidal leg standing seam roof system. Seamed with an interlocking snap seam making installation faster and easier. Panels are available in 18-inch and 24-inch widths. This panel requires a minimum slope of ¼:12 and is ideal for industrial, commercial and architectural applications.
Lock Standing Seam Panel
This is a snap-together standing seam roof system with a 1-3/4" tall vertical rib, for use on roofs with a minimum slope of 3:12.
Super Lock Standing Seam Panel
Super lock is a mechanically field-seamed, vertical leg standing seam roof system that combines a 2-inch tall slim rib with exceptional uplift resistance. This panel is available in both 12-inch and 16-inch widths.
Double Lock Standing Seam Panel
This roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. For use on roofs with a minimum slope of ¼:12.
- Floating Roof: Designed to eliminate the damage caused by thermal expansion and contraction.
- Fire Resistance Rating: UL “Class A” Fire Rating.
- UL 90 Rating: Over 7 different UL 90 construction numbers, each available with several options.
- FM: “Class 1” Standards: The Double-Lok® roof has met the rigorous “Class 1” standards for fire wind, foot tra c, hail damage resistance and water leakage resistance.
- Flexibility: Wall covering can be erected before or after the roof is installed.
- Durability: Every unpainted panel is manufactured from acrylic-coated Galvalume Plus®.
- Colors & Finishes: Panels are available in 22 popular colors.
- Prepunched: Our prepunched system, combined with self-engaging back-up plates, ensures panel modularity and speeds up roof installation.
- Acceptance: The most utilized standing seam roofing system. One million square feet of Ultra-Dek® and Double-Lok® ship weekly.
- Quality Control: Superior panel finish quality control from corporately owned coating operations.
- R&D: The most comprehensive research and development program in the industry, including UM and FM in-house testing.
- Design: Designed to avoid water and debris build-up and panel scoring.
- Training: Superior installation training programs which include a “Certified Installer” program.
Panel Specifications
Substrate
Galvalume coated steel. Unpainted Acrylics are coated.
Warranty
20-year finish warranty standard.
Sealant
Factory applied thermal set sealant, which resists dirt accumulation and thermal.
Insulation
Varying thickness up to an R-Value of 38.
Wind Uplift
UL 90 rated. FM 1-60 thru 1-105 ratings available.
Fasteners
- Eave – Self Driller with Neoprene Washer Endlaps – Self Tapper with Washer
- Ridge – Lap Tek Self Driller w/Neoprene Washer Clips to Purlins – Tek 2 Self Driller with Washer Trim to Panel -Lap Tek Self Driller with Neoprene Washer
Light Transmitting Panels
Optional skylights are available insulated or non-insulated, with or without a UL 90 rating.
Insurance
Our UL & FM ratings allow for reduced building insurance rates.
