Bracing transfers seismic and wind loads from endwalls and sidewalls to the foundation.

Wall Structural

Zee Girt A wall structural is a horizontal structural member that is attached to the sidewall or endwall columns and supports paneling.

Cee Channel A horizontal structural member cold formed from steel sheet in the shape of a “Z” that supports roof covering.

Cee-Purlin
Cee Channel

Roof Structural

Zee Purlin A roof structural is a horizontal structural member that supports the roof panels.

Eave Strut A horizontal structural member cold formed from steel sheet in the shape of a “Z” that supports roof covering.

Zee-Girt
Zee Purlin
ROD BRACING

(also called X-bracing) is a tension-only bracing system. It may be located in the roof and walls of a building between frame members, transferring longitudinal forces to the foundation.

Rod-Brace

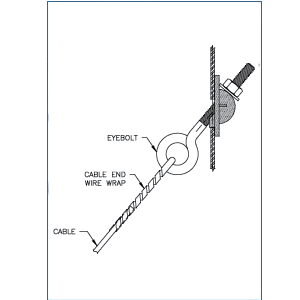

CABLE BRACING

Another tension-only X-bracing system. It is one of the most efficient ways to transfer longitudinal loads to the foundation in smaller low-rise buildings, however, it has application limitations due to capacity constraints for buildings with mezzanines, cranes, or in high seismic areas.

Cable-Brace
PORTAL BRACING

When bracing must occur in locations where doors or other ac- cessories would interfere with rod-bracing, a portal frame may be used. A portal frame is comprised of two columns and a rafter made of built-up material.

Portal-Brace

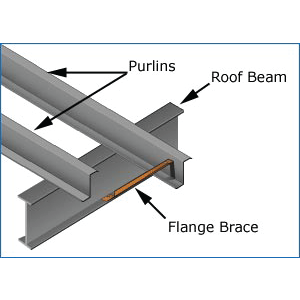

FLANGE BRACING

Structural members that attach purlins, girts, and eave struts to primary structural members. They are used to prevent the main frame from twisting or buckling laterally under the load. Flange braces can also be very useful as an erection aid to align the purlins and eave struts. Purlin bracing is an angle that connects the bottom flange of adjoining purlins to prevent purlin roll.

Flange-Brace
